Layout Builder

The Layout Builder is a visual and intuitive tool in the Astroid Framework that allows you to design your Joomla website’s layout using a drag-and-drop interface. It enables you to structure your template without writing any code.

Overview​

Astroid Framework’s Layout Builder gives you full control over your Joomla template’s structure using a visual drag-and-drop interface. The layout is organized as a nested tree:

root
└── sections
    └── rows
        └── cols
            └── elements (components, modules, widgets, etc.)


Layout Hierarchy Breakdown​

  • Root: The top-level container for your layout.
    • The top-level container that holds all sections.
    • Usually corresponds to the entire template layout.
    • Not editable directly but serves as the parent container.
  • Sections: A section is a major block of layout, commonly used to separate different parts of the page like Header, Main Content, Footer, etc.
    • Parent: root
    • Children: rows
    • Configurable Properties:
      • Name (label)
      • Background (color/image/video)
      • Width (container/container-fluid/full-width)
      • Padding & margin
      • Custom classes and IDs
  • Rows: Rows are horizontal containers within sections that can hold multiple columns.
    • Parent: section
    • Children: cols
    • Configurable Properties:
      • Name (label)
      • Background (color/image/video)
      • Padding & margin
      • Custom classes and IDs
  • Columns: Columns are vertical containers within rows that hold elements like text, images, modules, etc.
    • Parent: row
    • Children: elements
    • Configurable Properties:
      • Name (label)
      • Width (Bootstrap grid classes). Each column’s width is defined using the 12-grid system (e.g., 6+6, 4+4+4)
      • Background (color/image/video)
      • Padding & margin
      • Custom classes and IDs
  • Elements: Elements are the actual content blocks within columns, such as text, images, modules, etc.
    • Parent: col
    • Children: none (elements are leaf nodes)
    • Configurable Properties:
      • Type (component, module position, text, image, etc.)
      • Content (text, image source, module selection)
      • Alignment (left, center, right)
      • Padding & margin
      • Custom classes and IDs

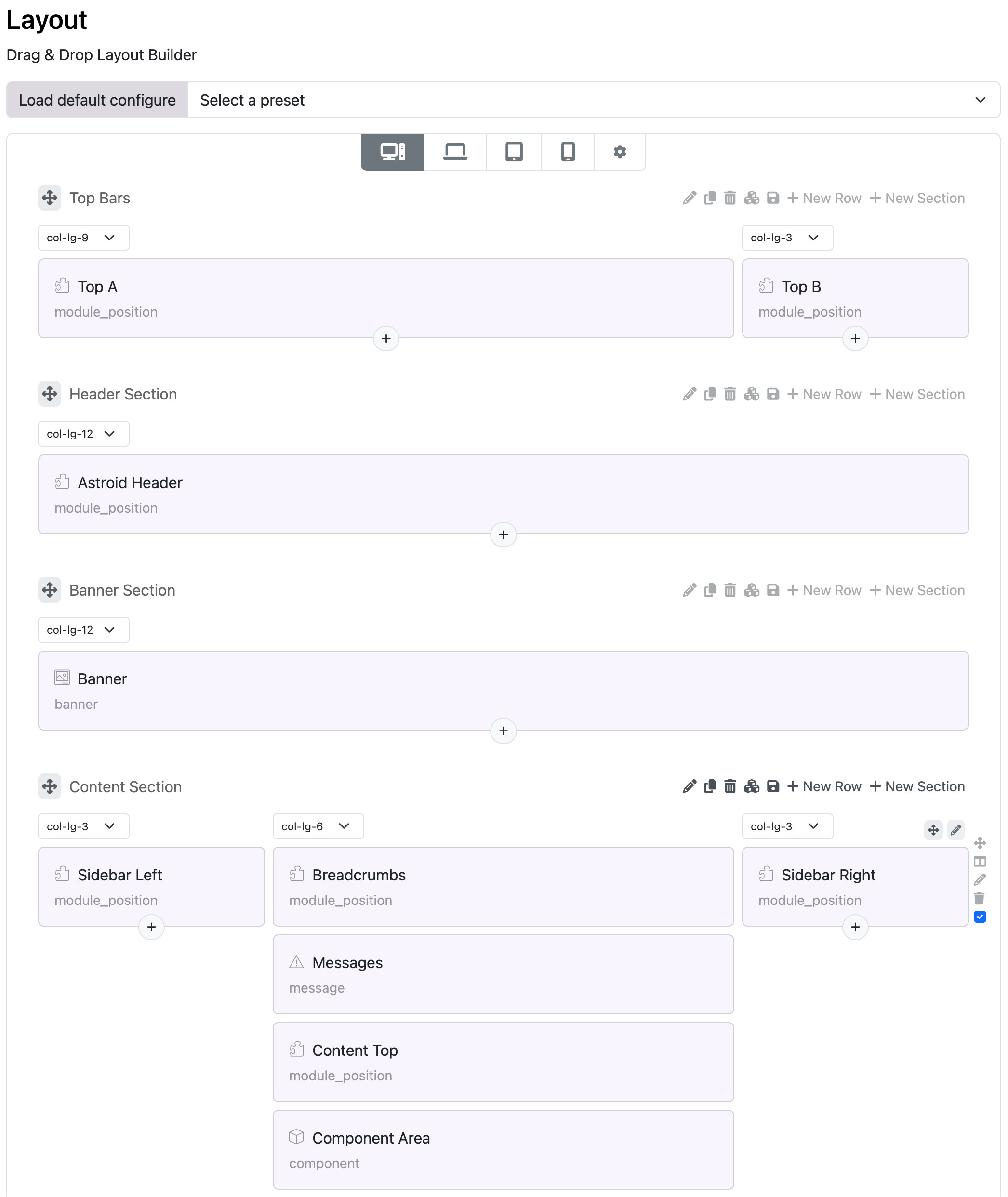

Working with Layout Builder​

  1. Accessing the Layout Builder:

    1. Log in to your Joomla Administrator Panel.
    2. Navigate to Templates > Styles.
    3. Select the template that uses Astroid Framework.
    4. Click on the Layout tab.

  2. Add Section

    1. Click “Add Section”
    2. Enter a name (e.g., “Header”)
    3. Configure width and background

  3. Add Row

    1. Inside a section, click “Add Row”
    2. Choose column layout (1-column, 2-column, etc.)

  4. Add Columns

    1. Columns are added by default when you add a row
    2. You can split columns, resize, duplicate, or delete them

  5. Add Elements

    1. Click inside a column
    2. Choose from: Component, Module Position, or Widget
    3. Configure the element’s name or settings

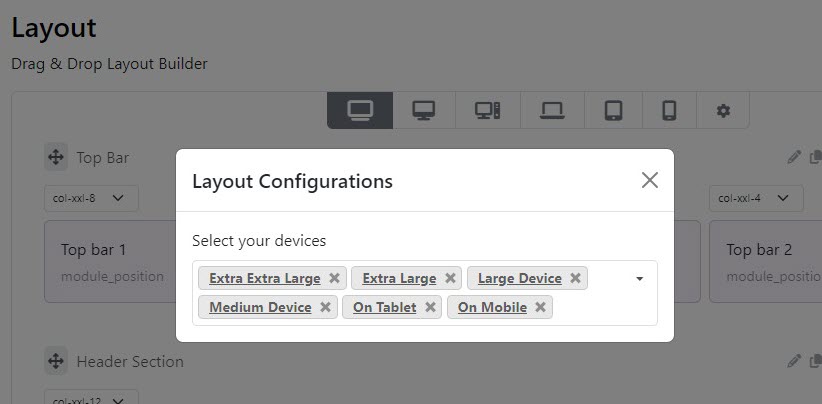

Responsive Configuration​

The Layout Builder allows you to configure how your layout behaves on different screen sizes:

  • XXL (Larger Desktop): Default layout for larger screens.
  • XL (Desktop): Adjusts layout for standard desktop screens.
  • LG (Tablet): Optimizes layout for tablet devices.
  • MD (Mobile Landscape): Configures layout for mobile landscape orientation.
  • SM (Mobile Portrait): Adjusts layout for mobile portrait orientation.
  • XS (Extra Small): Configures layout for very small screens (e.g., small phones).



Saving and Applying Layouts​

  • Use the Save or Save & Close buttons to apply changes
  • Use Export and Import to back up or reuse layout configurations (JSON format)

Best Practices​

  • Only use one Component element per layout
  • Use descriptive names for module positions
  • Place Widgets in reusable areas like header, top bar, or footer
  • Always preview on mobile before going live
  • Backup before major changes via Export

FAQs​

Q: Can I assign different layouts to different menu items?

A: Yes, using Astroid’s Menu Assignment feature.

Q: Can I nest elements inside elements?

A: No. Elements live inside columns. Nesting is handled via rows and columns only.

Q: Can I define custom widgets?

A: Yes, you can create custom widgets and use them in the Layout Builder.
